Creating Server Physical Port
Serial Port Redirector can be used as a serial port server for physical COM-ports.
1.

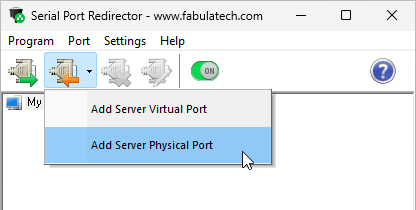

Click the down-arrow next the button and select Add Server Physical Port.
![Serial Port Redirector Toolbar](img/products/spr/help/add-physical-server-port.gif)

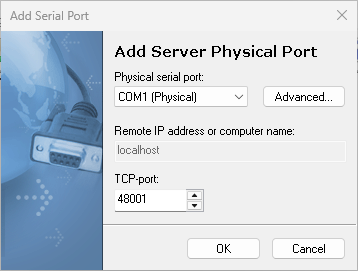

2. Select physical serial port number from the drop-down list.
![Add Server Serial Port](img/products/spr/help/add-new-physical-server-port.gif)
3. Specify TCP-port for incoming connections. Serial Port Redirector will listen on this TCP-port.
Note: Click Configuring Server Physical Port for details.
to configure advanced settings for serial port. Refer toThen click

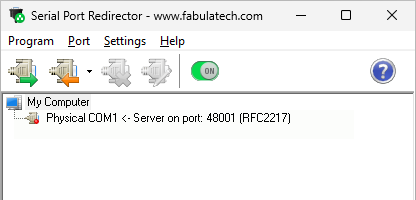

button.From now, Serial Port Redirector will listen on configured TCP-port for incoming connection. Once the incoming connection is established, all data from this connection is transferred to physical serial port and vice versa.
![Physical Serial Port](img/products/spr/help/connection-physical-server.gif)
